KSM-250 moving screw conveyor
 |

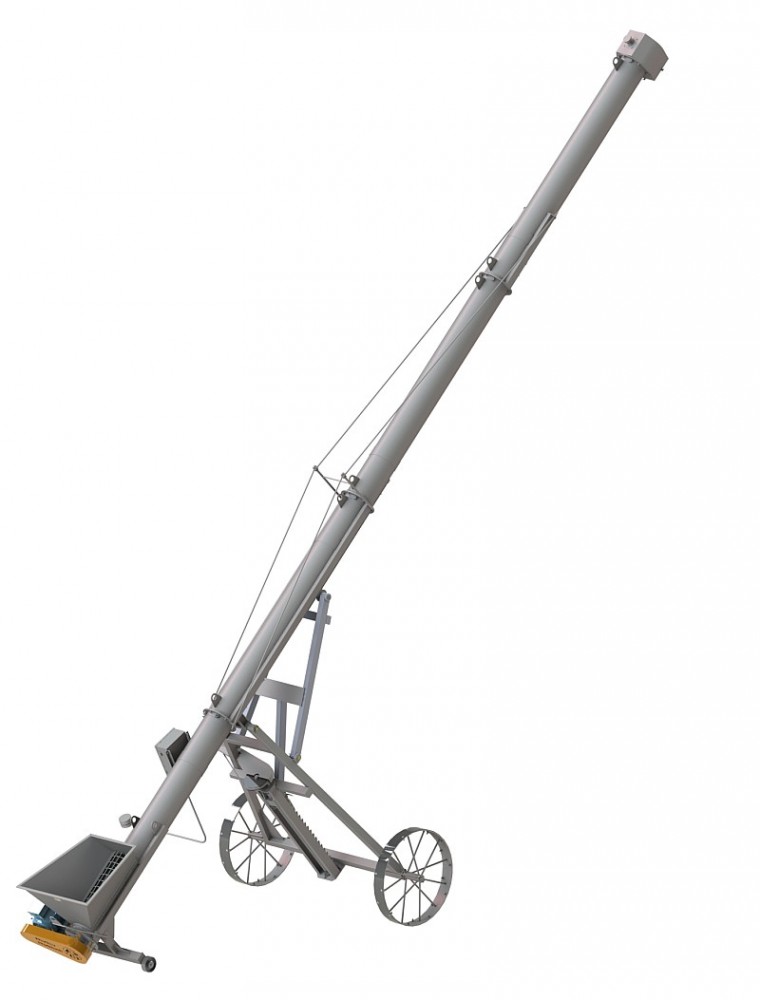

The KSM-250 moving screw conveyor consists of a pipe 1, an input tray 2, a conveyor part 3, an outlet branch pipe 4, a control panel 5, a lifting mechanism 6 and a drive section 7. It is designed for transportation of bulk cargo, its loading into motor vehicles and railway cars.
The principle of the unloader is that the grain flows to the input tray and moves to a rotating inclined screw, which transports the grain to the discharge branch pipe.
Potential flow-chart
 |  |
Conveyor size | KSM-250-10 | KSM-250-12 |
Grain output * with 14% humidity and min grain release altitude not less, t/h | 100 | 100 |
Screw diameter and pitch, mm | 250 | 250 |
Screw rotation frequency, r/min | 618 | 618 |
Electric drive installed power, kW | 11 | 11 |
Transportation length, m | 10 | 12 |
Min grain release altitude, mm | 2000 | 1800 |
Max grain release altitude, mm | 7000 | 5600 |
Weight, not more, kg | 700 | 1000 |
*bulk density 0.75 t/m³
Guarantee period - 18 months
