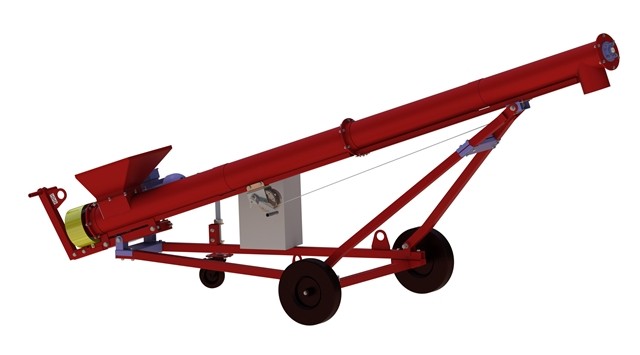

KSM-170 moving screw conveyor

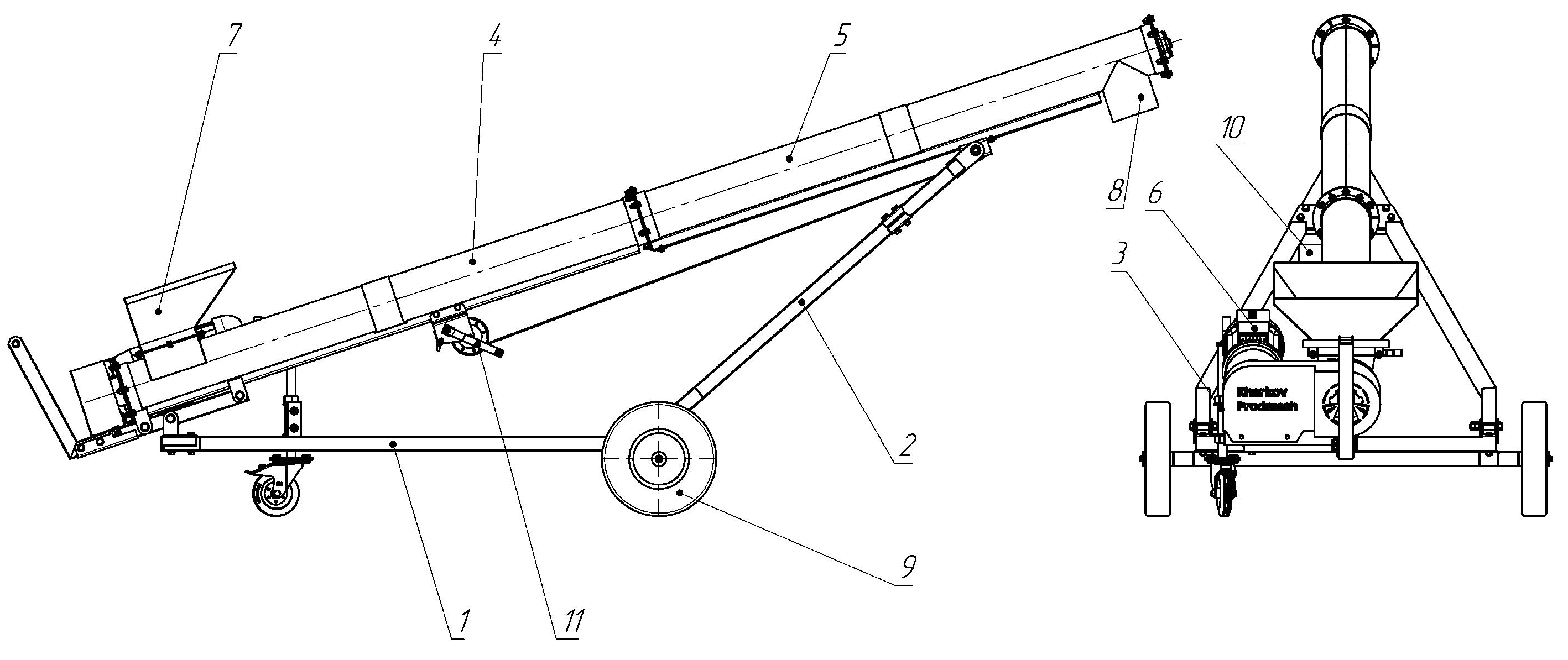

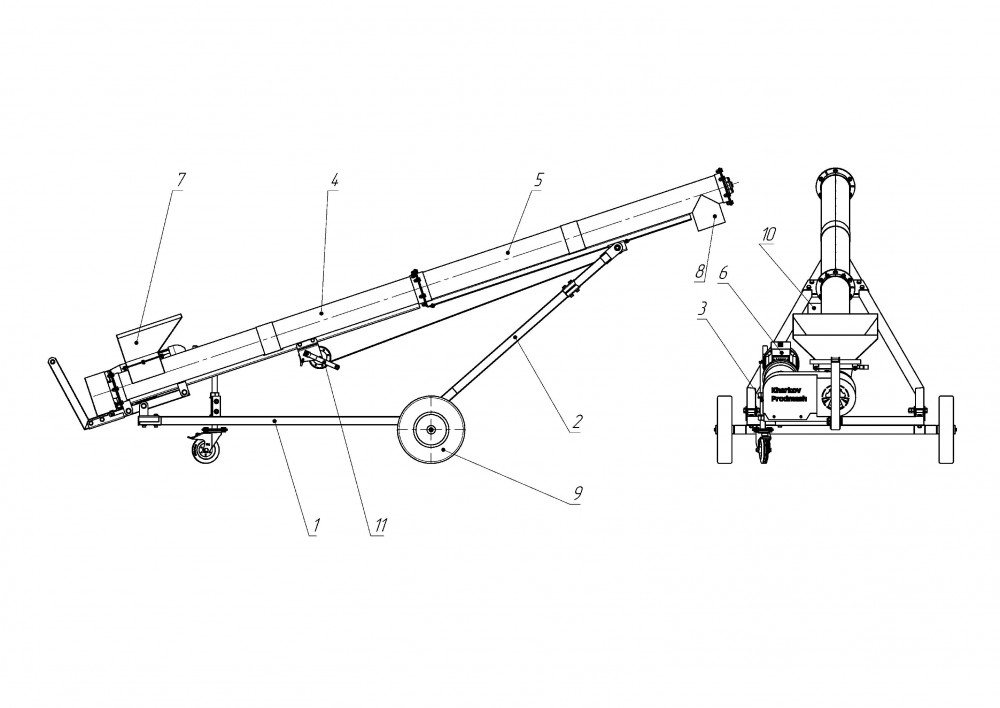

The conveyor consists of a frame 1, a movable frame 2, a motor gear frame 3, an initial and a final sections 4, 5, an electric drive 6, a hopper 7, an outlet branch tube 8, running wheels 9 and a control panel 10.

The conveyor is a continuous transporting machine with the working element being a screw, rotating in a closed pipe.

The height of the feed is changed by means of a hoist 11.
