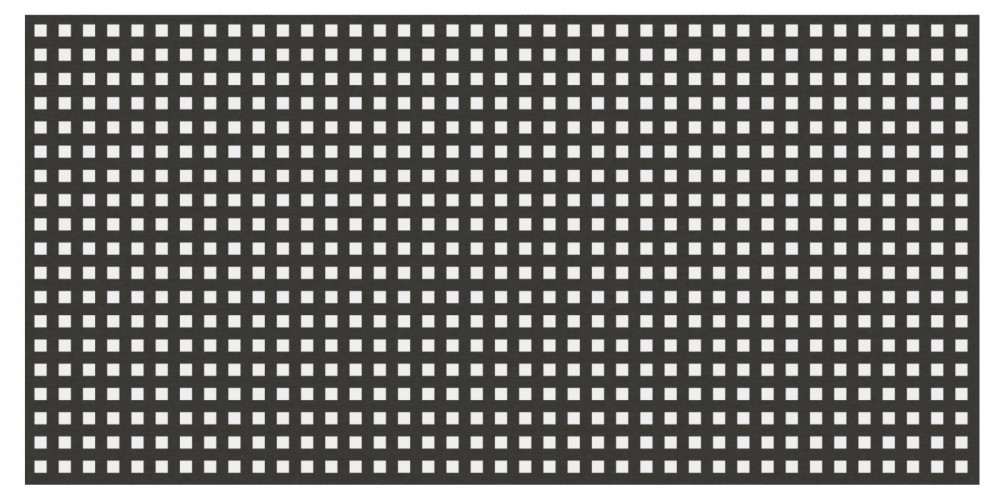

Sieves with square holes
Screens (sieves) with square holes.
 | a - hole size, mm t - hole pitch, mm F - open surface, % BxL - plate overall dimensions, mm b - plate thickness, mm |
a | t | F | BхL | b | ||
0,5 | 0,8 | 1,0 | ||||
5,0х5,0 | 7,5 | 44,4 | 1000х2000 | + | + | |
5,0х5,0 | 15,0 | 11,1 | 1000х2000 | + | + | + |
5,0х5,0 | 22,5 | 4,9 | 1000х2000 | + | + | + |
10,0х10,0 | 14,0 | 51,0 | 1000х2000 | + | + | + |
10,0х10,0 | 28,0 | 12,7 | 1000х2000 | + | + | + |
10,0х10,0 | 42,0 | 5,6 | 1000х2000 | + | + | + |
