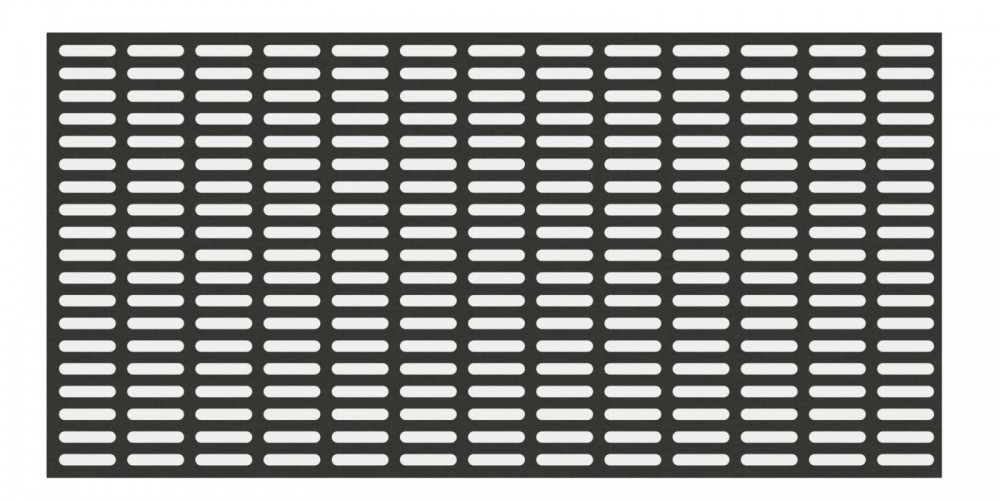

Screens (sieves) with rectangular slot-like holes with rounded corners, arranged in rows.

axS - hole size, mm
t₁ - hole pitch, mm
t₂ - hole pitch, mm
F - open surface,%
BxL - plate overall dimensions, mm
b - plate thickness, mm

a х S	t₁	t₂	F	BхL	b
a х S	t₁	t₂	F	BхL	0,8	1,0
2а-1-1,2x20	24,0	2,8	35,26	1000х2000	+	+
2а-1-1,3-20	24,0	3,1	36,38	1000х2000		+
2а-1-1,4-20	24,0	3,4	34,55	1000х2000		+
2а-1-1,5x20	24,0	7,5	32,8	1000х2000	+	+
2а-1-1,7x20	24,0	3,6	38,65	1000х2000	+	+
2а-1-1,8-20	24,0	4,0	39,28	1000х2000		+
2а-1-2,0x20	24,0	3,9	41,87	1000х2000	+	+
2а-1-2,2x20	25,0	4,2	39,91	1000х2000	+	+
2а-1-2,4x20	25,0	4,5	42,67	1000х2000	+	+
2а-1-2,5-20	24,0	5,0	41,20	1000х2000		+
2а-1-2,6-20	24,0	5,0	40,22	1000х2000		+
2а-1-2,8-20	24,0	5,0	43,01	1000х2000		+
2а-1-3,0-20	24,0	5,0	45,52	1000х2000		+
2а-1-3,2-20	24,0	6,0	42,01	1000х2000		+
2а-1-3,4-20	24,0	6,0	45,30	1000х2000		+
2а-1-3,6-20	24,0	6,0	47,30	1000х2000		+
2а-1-4,0-20	24,0	7,0	45,10	1000х2000		+
2а-1-4,5-20	24,0	8,0	44,41	1000х2000		+
2а-1-5,0-20	24,0	8,0	49,48	1000х2000		+
