Manual rack and pinion gate

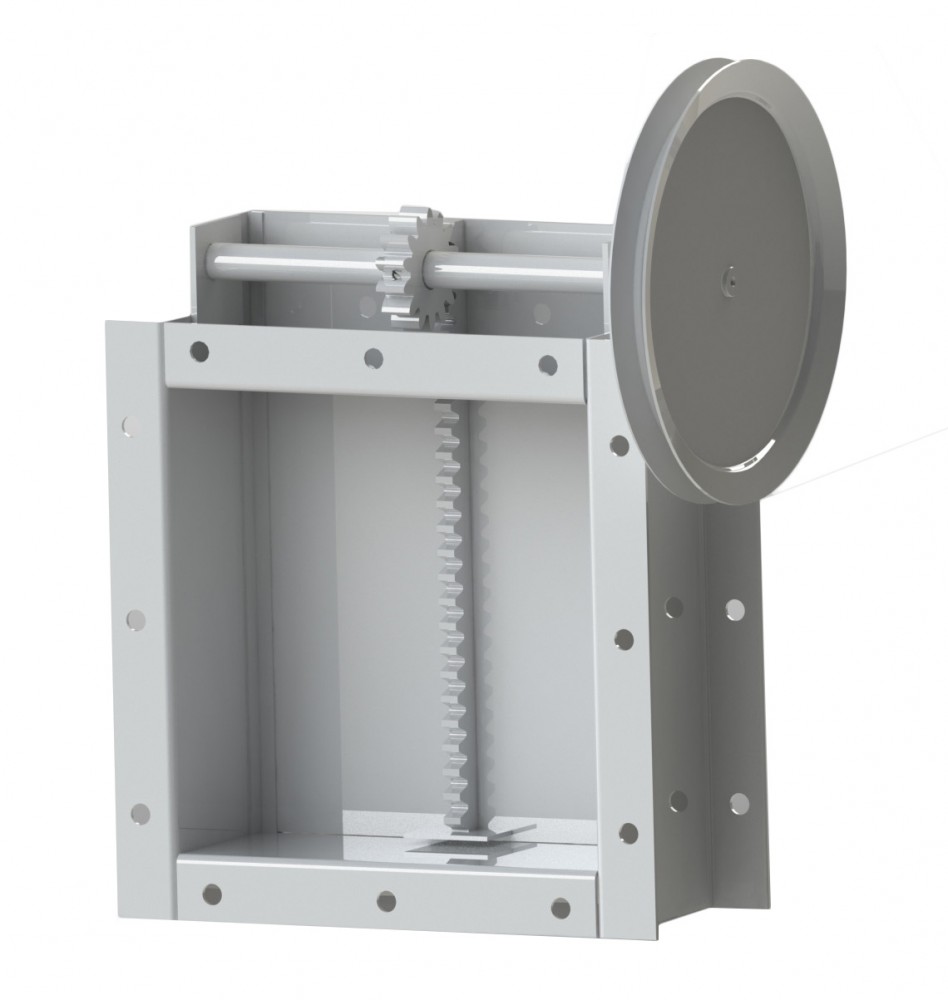

The gate consists of a welded body 1, a rack 2, a sliding valve 3, a pinion 4 and a handwheel 5 with an axis 6. The body frame consists of an upper and a lower flange connected by a box. Its sidewalls have rails 7, welded to it, which allow the sliding valve, whith a rack fixed on its central axis, to slide. The flange has fixation holes, which help to connect the device with the pipeline.
If it is necessary to adjust the flow of bulk material, the worker manually actuates a handwheel, with the pinion on its axis. The rotation is converted into translational motion by means of a rack and pinion gear, and a gate valve moves in the proper direction. The degree of opening of the shutter sets the required clearance for material receipt.
Gate part number | Cross section, mm | Overall dimensions, mm (length x width x height) | Weight, kg |
ZRT-200 | 200х200 | 434х330х285 | 11 |
ZRT-300 | 300х300 | 534х430х285 | 17 |
ZRT-350 | 350х350 | 584х480х285 | 20 |
ZRT-400 | 400х400 | 634х530х285 | 23 |
ZRT-450 | 450х450 | 684х580х285 | 26 |
ZRT-600 | 600х600 | 1000х730х285 | 55 |
