BIS-100, BSH-100 frames

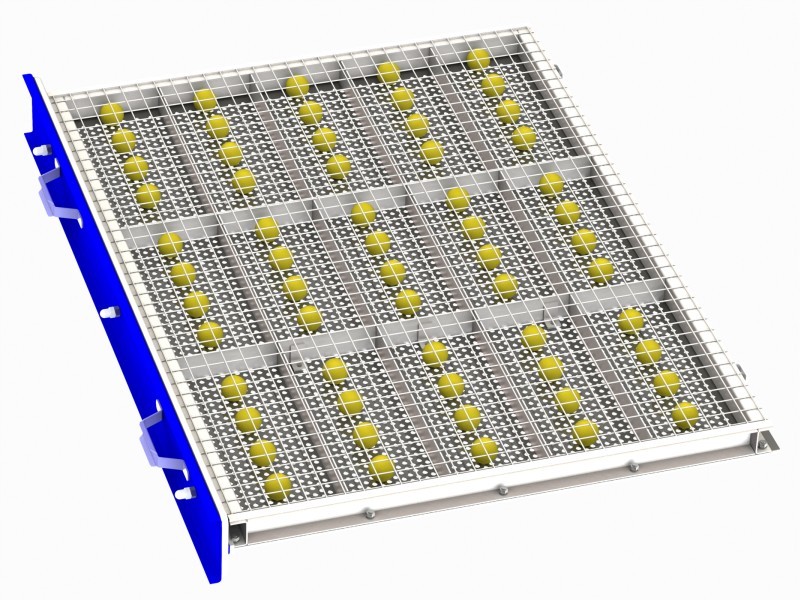

Frame carcass is made of sheet steel with 2mm thickness. Frame carcasses are divided by longitudinal and transverse partitions with rubber balls with a diameter of 35 mm inside of them, which are designed to clean the sieves from contamination.
They are completed with the sieves having different hole diameters.
Crop name | Elevator mode | Mill mode | |||
Sizing screen, aperture, mm | Dirt screen, aperture, mm | Sizing screen, aperture, mm | Dirt screen, aperture, mm | ||
Wheat | Ø10÷8 | 1,7…2х20 | Ø7÷5 | 1,7…2х20 | |
Rye | Ø10÷8 | 1,7…2х20 | Ø7÷5 | 1,7…2х20 | |
Barley | Ø10÷8 | 2…2,4х20 | Ø8÷4,5 | 2…2,4х20 | |
Oats | Ø10÷8 | 1,7…2,2х20 | Ø8÷6 | 1,7…2,2х20 | |
Rice | Ø10÷8 | Ø2,5÷3,5 | Ø6,5÷5,5 | Ø2,5÷3,5 | |
Buckwheat | Ø8÷7 | 2…2,4х20 | Ø6÷5 | 2…2,4х20 | |
Millet | Ø8÷6 | 1,4…1,6х20 | Ø4÷3 | 1,4…1,6х20 | |
Peas | Ø10÷8 | 2,7…4х20 | Ø10÷8 | 2,7…4х20 | |
Sunflower | Ø10÷8 | 1,7…3х20 | Ø10÷6 | 1,7…3х20 | |
Corn | Ø12÷10 | 3…5х20 | Ø12÷10 | 3…5х20 | |
