1SF square flanges
Currently there is no information.

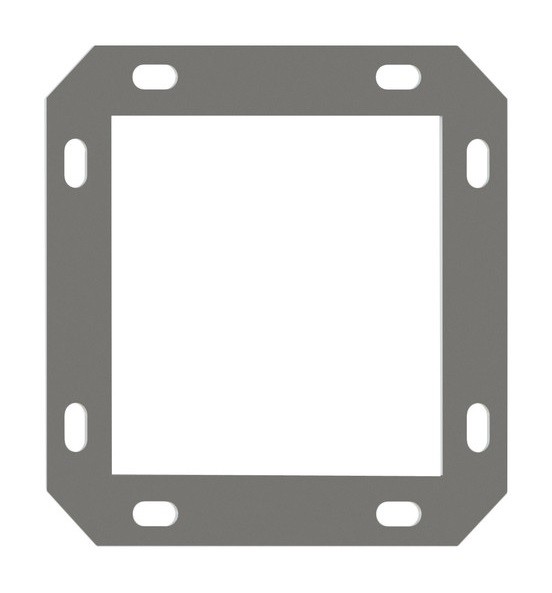

Square plane flanges
Marking | А,mm | Б,mm | В,mm | d,mm | s,mm |
1SF11а | 144 | 184 | 100 | 12х16 | 4 |
1SF12а | 204 | 248 | 150 | 14х28 | 4 |

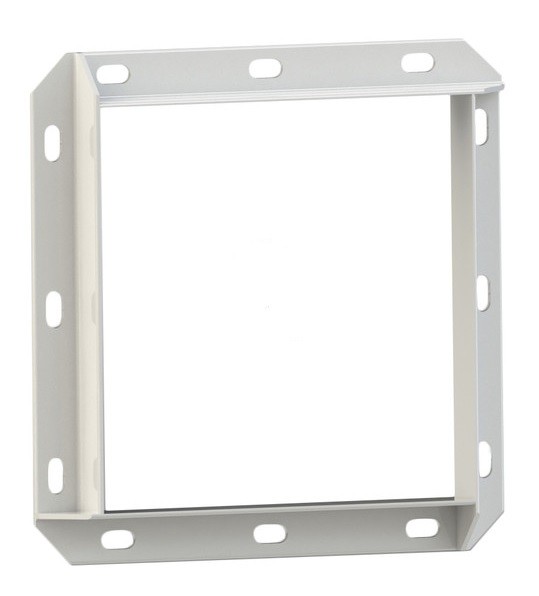

Square flanges
Marking | А,mm | Б,mm | В,mm | d,mm |
1SF12 | 204 | 248 | 75 | 14х28 |
1SF13 | 304 | 350 | 125 | 14х28 |
1SF14 | 354 | 402 | 150 | 14х28 |
